New Architectural Details for Wood Rain Screen Cladding System

Written by on

Many design professionals have asked us to assist with detail drawings of the Climate-Shield Rain Screen Wood Siding System. We listened and have created an entire suite of architectural details for the design community using the Climate-Shield Rain Screen Wood Siding System. If you are considering a wood rain screen cladding system for your home or building design, these architectural drawings and details should be very helpful for you.

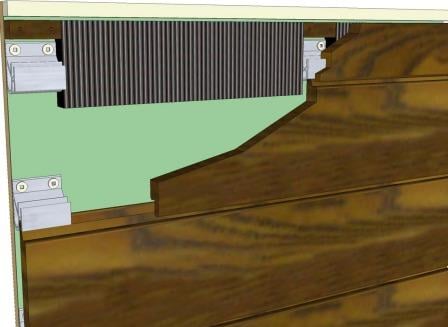

To help provide a better understanding of how architectural details for rain screen cladding systemthis innovative rain screen cladding system works, we have drawn some rainscreen cladding designs to help serve as a wood rain screen system overview. The following rainscreen wood siding architectural details are available in PDF format:

  • Horizontal 1x6 rain screen wood siding with the new starter rail system

  • Horizontal 1x6 rain screen wood siding with the rainscreen clips

  • Horizontal 1x4 rain screen wood siding with the new starter rail system

  • Horizontal 1x4 rain screen wood siding with the rainscreen clips



The assist you with your rainscreen system architectural drawings the following Architectural CAD details for wood rain screen cladding systemrainscreen cladding details have been developed in CAD file format:

  • Climate-Shield Rainscreen Aluminum Outside Corner System assembly

  • Climate-Shield Rainscreen Aluminum Outside Corner components detail

  • Climate-Shield Rainscreen Inside Corner assembly

  • Climate-Shield Rainscreen wall assembly using 1x4 rainscreen cladding

  • Climate-Shield Rainscreen wall assembly using 1x6 rainscreen cladding



Architectural Details for Climate-Shield System

Understanding Rain Screen Systems

Request Free Rain Screen Quote

To download a comprehensive whitepaper about wood rainscreen systems, please click on the link below.

download ultimate guide to rain screen siding
