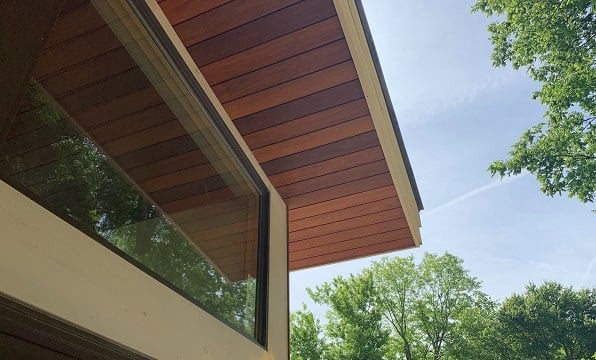

Ipe rainscreen soffit with Climate-Shield CS10 specialty clip

Architectural Details CS10 Rain Screen Assemblies

Architectural Rain Screen Design Details CS10 Specialty Clip Assemblies

600 px W Climate Shield Logo RAINscreen siding edited 11.2.22 copy

Low Clearance CS10 Specialty Clip Rain Screen Design Options

This web page contains typical low clearance wall and soffit assemblies for the Climate-Shield CS10 Specialty Rain Screen Clip and components.  The 10-mm rain screen gap (wall cavity) is designed for use over plywood or OSB wall sheathing for horizontal siding and soffit designs in non-hurricane zones, where a 10mm (3/8"+) ventilated wall cavity is adequate.

We hope these architectural rain screen design details save you time to help you create your design. If your project design presents additional or unique design challenges, please contact our Technical Team online, or call us at (860) 444-7524 weekdays from 8:00 am to 5:00 pm EST.




Climate-Shield CS-10 Rain Screen Assembly Detail Horizontal Siding over Plywood or OSB Exterior Sheathing

Architectural rain screen details and drawings for typical low-clearance horizontal rain screen installation with 1x4 or 1x6 wood cladding using Climate-Shield CS10 Rainscreen Clips and Starter Rail

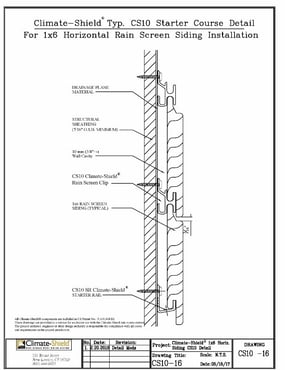

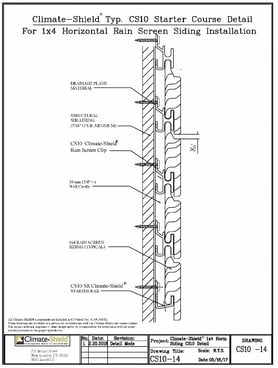

 Horizontal 1x6 Wood Rain Screen Installation into Structural Sheathing  Horizontal 1x4 Wood Rain Screen Installation into Structural Sheathing

CS10 1x6 Wall assembly.jpg

CS10 Specialty Clip Design Limitations:

• 10mm ventilated wall cavity

• Maximum 180 MPH wind load at 16" OC

• For attachment to plywood or OSB sheathing

For other design requirements: refer to Climate-Shield CS2 assembly details

CS10 1x4 Wall assembly-1.jpg

CS10 Specialty Clip Design Limitations:

• 10mm ventilated wall cavity

• Maximum 180 MPH wind load at 16" OC

• For attachment to plywood or OSB sheathing

For other design requirements: refer to Climate-Shield CS2 assembly details

DOWNLOAD PDF FILE

DOWNLOAD CAD FILE

DOWNLOAD PDF FILE

DOWNLOAD CAD FILE

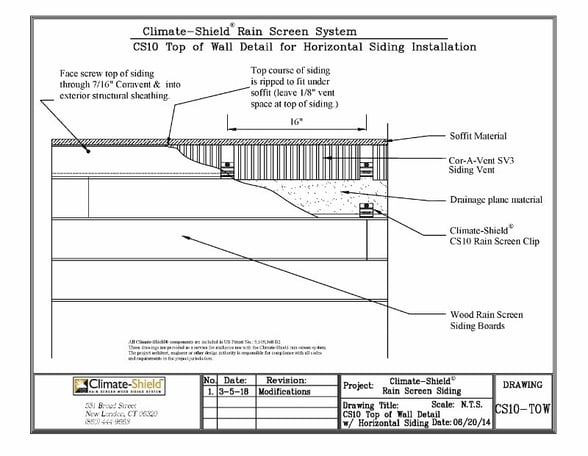

HORIZONTAL SIDING TOP COURSE DETAILS CS-10 SPECIALTY CLIP

Architectural drawing for typical horizontal rain screen installation under the soffit using Climate-Shield CS10 Rainscreen Clips

(May also be used under windows.)

 CS10 Typical Top of Wall assembly.jpg

DOWNLOAD PDF FILE

DOWNLOAD CAD FILE



CS10 Specialty Clip Design Limitations:

10mm ventilated wall cavity

maximum 180 MPH wind load at 16" OC

for attachment to plywood or OSB sheathing

For other design requirements: refer to Climate-Shield CS2 assembly details

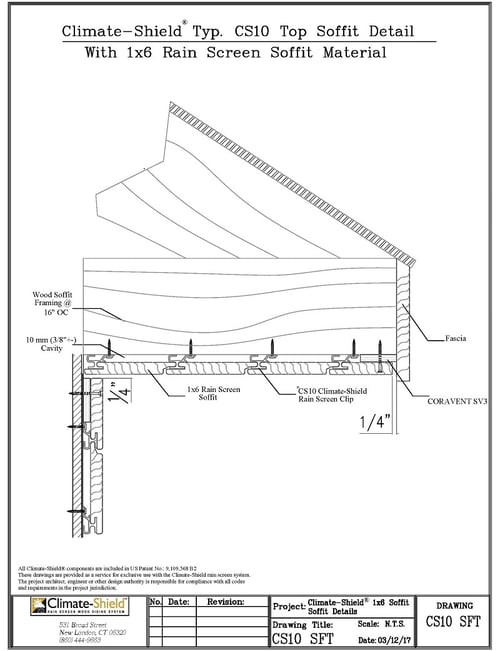

TYPICAL LOW CLEARANCE SOFFIT DETAILS  FOR ATTACHMENT TO WOOD FRAMING MEMBER

Architectural detail for typical low clearance soffit - Climate-Shield CS10 specialty fastener to wood framing member

The 1-1/2" wide CS10 specialty clip is ideal for fastening to wood framing members at 16" on center.

CS10 Soffit Detail.jpg

DOWNLOAD PDF FILE FOR SOFFIT DETAIL

DOWNLOAD CAD FILE FOR SOFFIT DETAIL


DOWNLOAD 3 PART CSI SPECIFICATIONS FOR CS10 RAIN SCREEN

DOWNLOAD CS10 RAIN SCREEN CLIP PRODUCT SUBMITTAL SHEET

DOWNLOAD CS10 RAIN SCREEN STARTER RAIL PRODUCT SUBMITTAL SHEET
