    Trespa Pura NFC® Siding Solutions for Design Professionals

    VERTICAL CLADDING DETAILS



    Many architects and design professionals worldwide have specified and worked with Trespa claddings. Trespa Pura claddings offer many design advantages over other premium cladding solutions. Trespa Pura sidings are an excellent design solution for residential and light commercial projects where performance is required. Trespa Pura may be installed horizontally, vertically or diagonally.

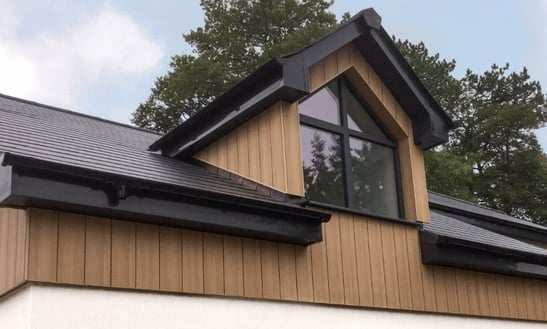

     Trespa Pura NFC Sidings vertical installation

    Trespa Pura vertical installation on residential project. Photo courtesy of Performance Panels UK



    Why Design with Trespa Pura NFC® Siding?

    Trespa Pura NFC® sidings are high-performance, consistently manufactured architectural cladding products. Trespa is excellent design and specification solution for many exterior facades. Here's why: are a few reasons to consider Trespa Pura NFC siding for your next cladding design:

    • 16 readily available color options for all types of designs
    • Including the Wood Decors Collection - with the warm look of wood siding in eight different colors.
    • The Uni Colours Collection is available in eight monochromatic tones for accents, full facades or a mixed-palette design complement
    • Requires no pre-finishing or re-finishing over the lifetime of the siding
    • High performance
    • Low Maintenance
    • Low life cycle costs
    • 10-Year Limited Warranty
    • Readily available and budget friendly







    Download Trespa Pura NFC® Cladding Drawings

    Download Trespa cladding details for your architectural drawings with vertical designs here and save time.

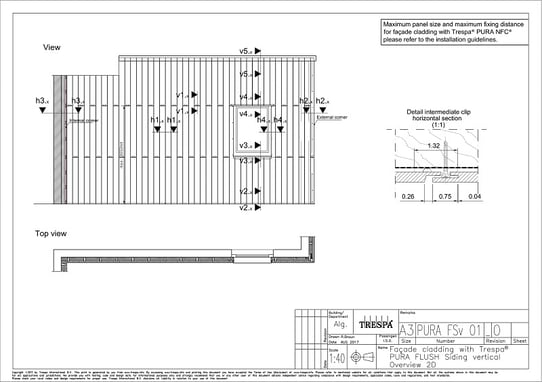

    Trespa Pura NFC Flush Siding - Typical Vertical Layout

    PURA Flush siding Vert O1 -Typical Vertical View

    Download PDF -Trespa Pura NFC Flush Siding - Typical Vertical Layout






    Trespa Pura NFC Flush Sidings - Vertical Fastening Details

    PURA Flush siding vert O2 Vertical Clip Fastening Details

    Download PDF - Trespa Pura NFC Flush Sidings Vertical Fastening Details

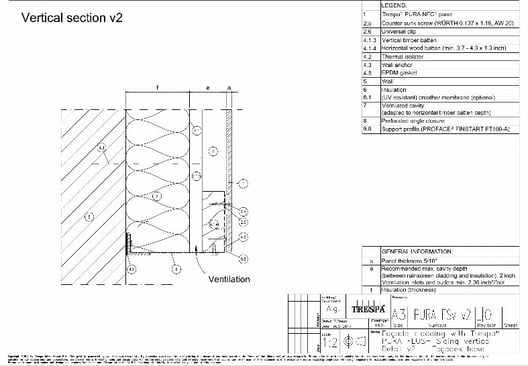

     Trespa Pura NFC Flush Sidings - Vertical Starter Base Detail

    PURA Flush siding vert v2_0 Vertical Starter Base Detail-1

    Download PDF - Trespa Pura NFC Flush Sidings Vertical Starter Base Detail

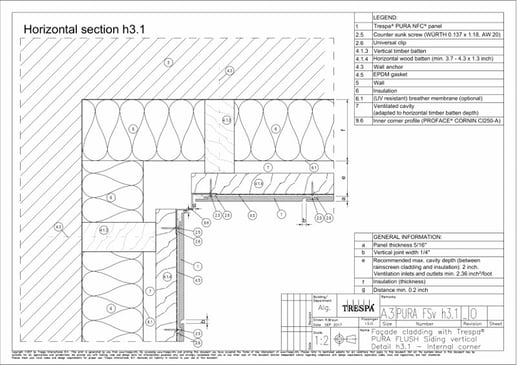

    Trespa Pura NFC Flush Sidings - Vertical Inside Corner Details

    PURA Flush siding vert h3_1 Vertical Inside Corner Detail with Trim

    Download PDF - Trespa Pura NFC Flush Sidings Vertical Inside Corner Details

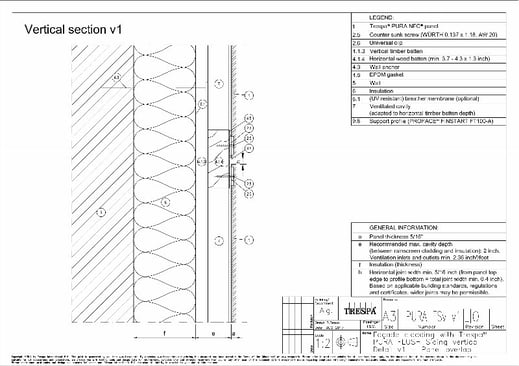

    Trespa Pura NFC Flush Sidings - Vertical Panel Overlap Details

    PURA Flush siding vert v1_0 Vertical Panel Overlap Detail



    Download PDF - Trespa Pura NFC Flush Sidings Vertical Panel Overlap Details

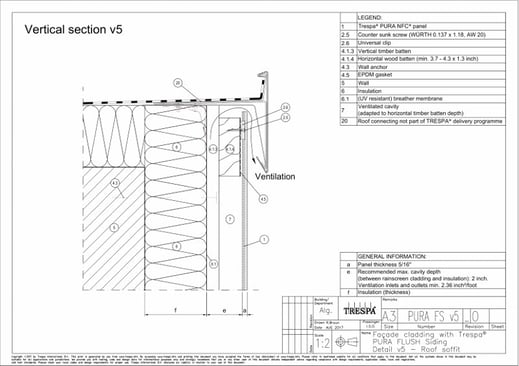

    Trespa Pura NFC Flush Sidings - Vertical Top of Wall Detail

    PURA Flush siding vert v5_0 Vertical Top of Wall Detail



    Download PDF - Trespa Pura NFC Flush Sidings Vertical Top of Wall Details

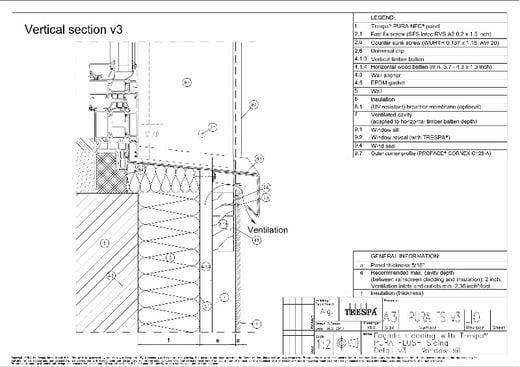

    Trespa Pura NFC Flush Sidings - Vertical Window Sill Detail

    PURA Flush siding vert v3_0 Vertical Window Sill Details



    Download PDF - Trespa Pura NFC Flush Sidings Vertical Window Sill Details

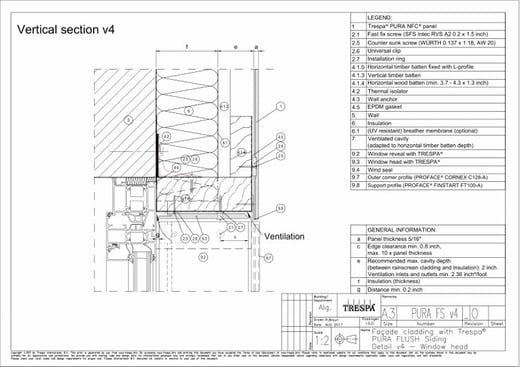

    Trespa Pura NFC Flush Sidings - Vertical Window Header Detail

    PURA Flush siding vert v4_0 Vertical Window head-Detail



    Download PDF - Trespa Pura NFC Flush Sidings Vertical Window Header Details

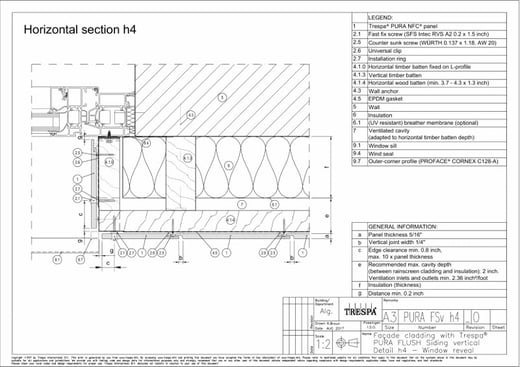

    Trespa Pura NFC Flush Sidings - Vertical Window Embrasure Detail



    PURA Flush siding vert h4_0 Vertical Window Embrasure Detail

    Download PDF - Trespa Pura NFC Flush Sidings Vertical Window Embrasure Details






    DOWNLOAD TRESPA PURA NFC CLADDINGS 3 PART CSI

    SPECIFICATIONS 07 42 43






     Request Trespa Pura NFC Sidings Samples                      Request Trespa Pura NFC Sidings Quote

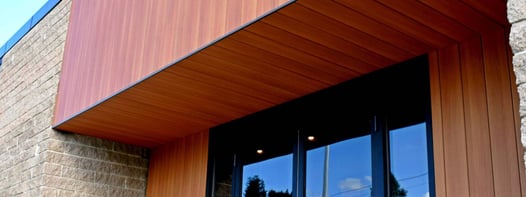

     Trespa Pura vertical installation in New England

    Trespa Pura vertical installation on walls and soffits

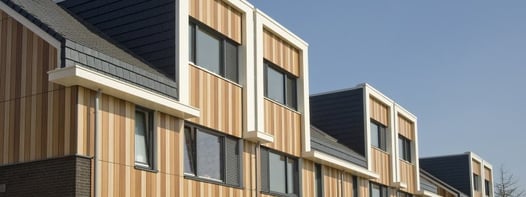

    Trespa Pura vertical design for apartments  using multiple colors

    Trespa Pura cladding installed vertically on apartment project

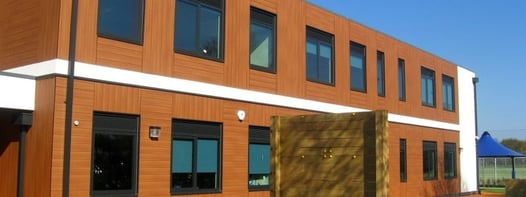

    Trespa Pura used vertically and horizontally

    Trespa Pura architectural cladding used horizontally and vertically on school project

    VISIT TRESPA PURA SIDING GALLERY TO SEE MORE PICTURES
