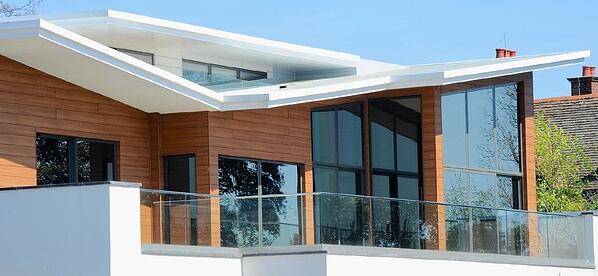

Trespa pura Romantic Walnut architectural cladding-1

Trespa Pura®

NFC Sidings

Design with Trespa Pura® Siding using the Climate-Shield® CST1 Rainscreen System™

Pura NFC Sidings by Trespa

climate-shield_rain_screen_siding_system_logo

Design your facades beautifully and efficiently using Trespa Pura NFC® Sidings and the patented Climate-Shield Rain Screen System. Get the elegant look of wood siding for your design - without all the maintenance of real wood. Keep your project on time and on budget and delight your clients.


Trespa Residential Projects Portfolio Download Today

Why Design with the Climate-Shield CST1 Rainscreen System?

Climate-Shield® is the recognized leader for wood rainscreen technology. Climate-Shield's patented rainscreen components offer architects and design professionals sustainable solutions and methods to design and build high-performance rainscreen systems.

The Climate-Shield CST1 Rainscreen System is specially designed to work with Trespa Pura architectural claddings over plywood or OSB exterior sheathing, using an appropriate AWB (Air / Water Barrier). The CST1 system eliminates the need for furring strips for 'field siding'.  This creates an efficient, high performance, back-ventilated, pressure-equalized rain screen system.

Because Trespa Pura is designed and installed as an open joint rainscreen system, UV resistive black weather resistive barriers look and perform best with the CST1 system.

The Climate-Shield CST1 rain screen clip and CSTSR8 Starter Rail provide a design/build assembly solution that minimizes the need for wood furring strips in the rain screen cavity.

The key design benefits for the CST1 system with Trespa cladding are that it creates a sustainable design with a pressure equalized rainscreen that provides superior ventilation,  faster cavity drying time and extended life-cycle expectations.

The key installation benefits for the CST1 system with Trespa siding are that it reduces labor time, cuts labor cost, and saves material costs upfront. It also provides a better performing system for your client, throughout its life cycle.  The starter rail makes it much easier to set the first course of cladding perfectly level.

The key benefits for owners are a healthier, higher performing rainscreen system with lower life cycle costs, low maintenance and long lasting beauty.

DESIGN WITH TRESPA PURA CLADDING AND CLIMATE-SHIELD CST1 SYSTEM

  • Create a healthier, more sustainable design for your clients with Trespa Pura claddings using the patented Climate-Shield CST1 rainscreen system.
  • Design your project facades with Trespa Pura wood décor claddings. Provide the allure of natural wood sidings with a low maintenance cladding solution
  • Improve the performance of your wall assembly, while reducing upfront cost for your clients and offering low life-cycle costs

HORIZONTAL CLADDING DESIGN DETAILS

HORIZONTAL CLADDING DETAILS FOR TRESPA PURA

Download Trespa Pura Horizontal Details using Climate-Shield Rain Screen Components

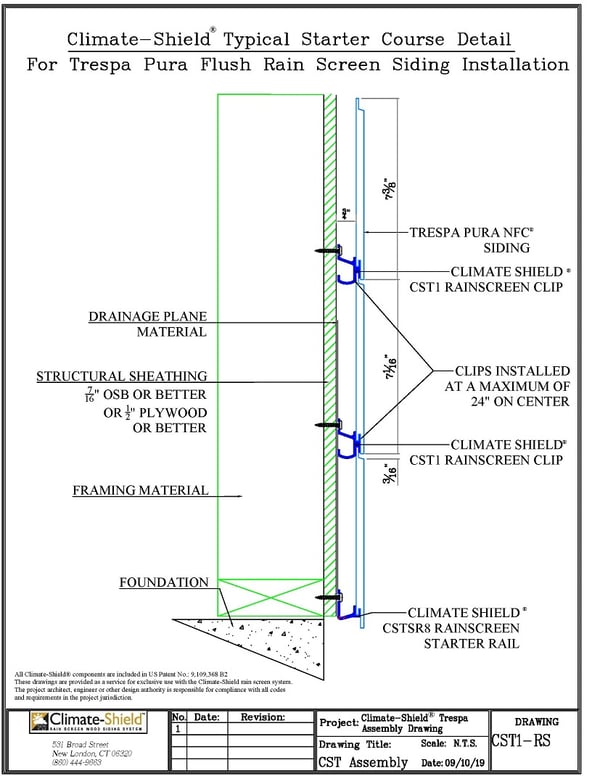

Climate-Shield CSTSR8 Starter Rail Trespa Pura Wall Assembly Details

Climate-Shield Trespa CST1 Clip and rainscreen starter rail details

DOWNLOAD PDF                                DOWNLOAD CAD

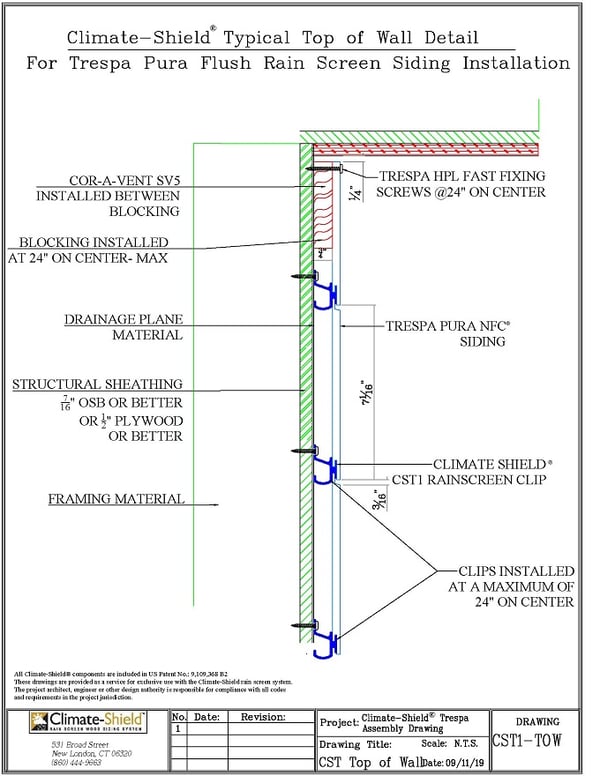

Climate-Shield CST1 Trespa Pura Top of Wall Assembly Details

Climate-Shield Trespa Top of Wall Assembly details

DOWNLOAD PDF                                DOWNLOAD CAD

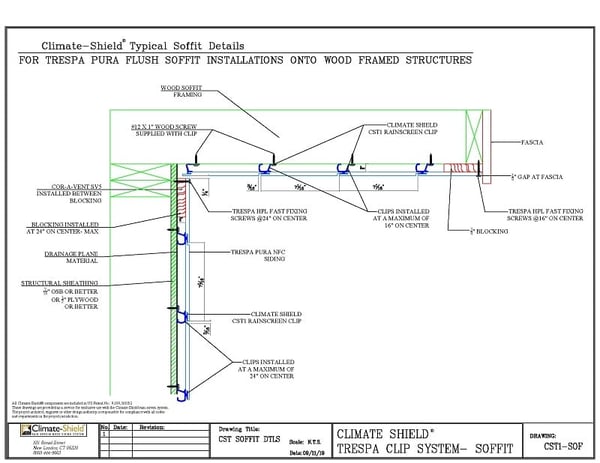

Climate-Shield CST1 Trespa Pura Soffit Assembly Details

CS T Climate-Shield Trespa  SIDEWALL & SOFFIT detail

DOWNLOAD PDF                              DOWNLOAD CAD


VERTICAL CLADDING DETAILS FOR TRESPA PURA

Download Trespa Pura Vertical Details using Climate-Shield Rainscreen Components

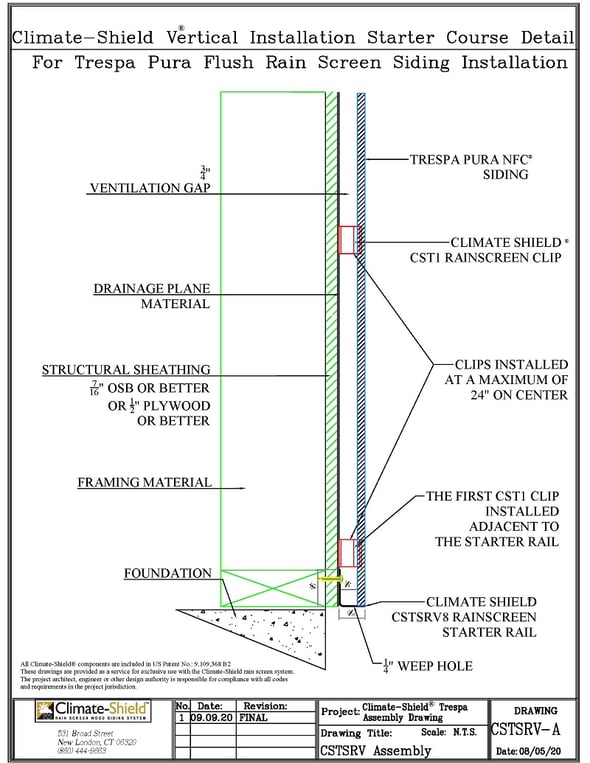

CSTV Climate-Shield Trespa Vertical Wall Assembly at Starter Rail

CSTSRV-A Trespa vertical wall assembly at starter rail 9-9-20

DOWNLOAD PDF                              DOWNLOAD CAD

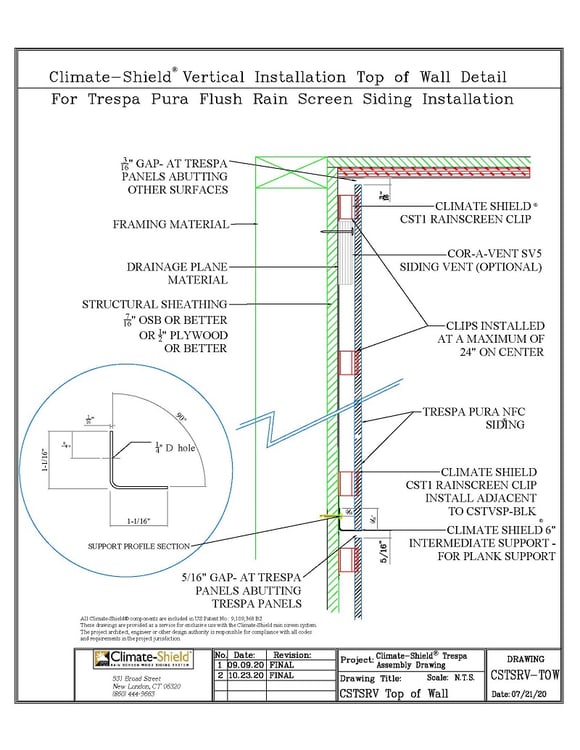

CSTV Climate-Shield Trespa Vertical Top of Wall Assembly

CSTSRV-TOW-FINAL 10-23-20

DOWNLOAD PDF                              DOWNLOAD CAD

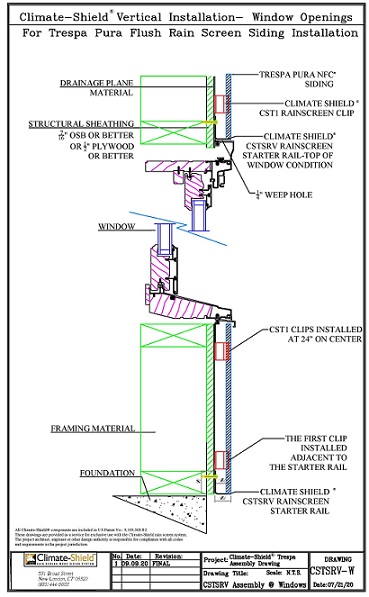

CSTV Climate-Shield Trespa Vertical Wall Assembly at Windows

CSTSRV-W- Trespa vertical window detail wall assembly  9-9-20

DOWNLOAD PDF                              DOWNLOAD CAD




Additional Downloads:

CSTSRV (VERTICAL COMPONENTS) SUBMITTAL SHEET

DOWNLOAD TRESPA PURA CLIMATE-SHIELD CST1 BROCHURE

DOWNLOAD TRESPA PURA CST1 INSTALLATION GUIDELINES



Additional helpful Links to Information:

GO HERE FOR ADDITIONAL TRESPA PURA HORIZONTAL DETAILS (Furring strip installation)

GO HERE FOR TRESPA PURA VERTICAL DETAILS (Furring Strip installation)

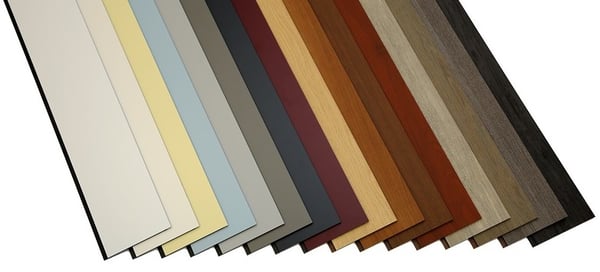

CHOOSE TRESPA PURA COLORS AND DECORS
