RAINSCREEN WOOD SIDING TYPES
CLIMATE-SHIELD® RAINSCREEN SYSTEM™
A wide variety of wood siding species are available for use with the Climate-Shield® Rainscreen System. Some of the most popular and best performing wood cladding options include Mataverde® high density hardwood species such as Mataverde Ipe siding, Cumaru siding, Garapa siding, Jatoba siding, and FSC® Certified Machiche siding. These beautiful and long-lasting wood rainscreen cladding species are a perfect façade for the Climate-Shield® Rainscreen System.
Want more real-world commercial rainscreen project details ?
Download the FREE Featured Wood Rainscreen Commercial Projects Portfolio here.

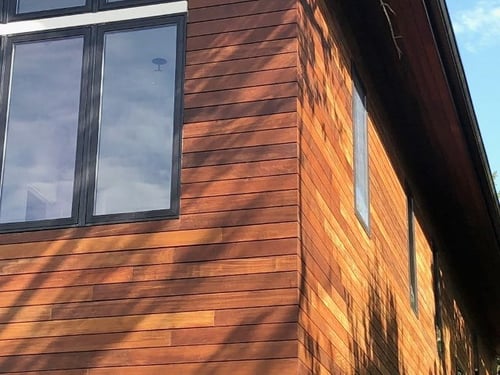

Ipe Hardwood Rainscreen Cladding and Siding
CLIMATE-SHIELD RAINSCREEN SYSTEM INSTALLATIONS
Ipe makes an impressive and long lasting rainscreen cladding material. The beautiful brown tones of Ipe siding add a warm visual appeal and the durability of Ipe rainscreen cladding material make it a natural for rainscreen system installations.
Mataverde Ipe hardwood decking and siding has been thoroughly tested and has received a Class A fire rating. Mataverde Ipe meets all the standard performance requirements for the ASTM E-84 testing for Class A building materials.
Choose a link below now.
Get all the facts. Download a helpful PDF about Ipe Siding:

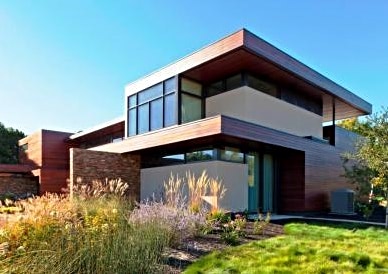

FSC® Machiche Rainscreen Siding and Cladding
FOR THE CLIMATE-SHIELD© RAINSCREEN SYSTEM™
Mataverde Machiche FSC® Hardwood Cladding is another rugged and durable species available for wood rainscreen siding installations. Pronounced /mah-CHEE'-chay/, Mataverde Machiche hardwood siding has the same strength and high density characteristics as Machiche decking lumber.
Machiche hardwood siding has a naturally rich, chocolatey-brown color that can be enhanced with a natural oil finish, (we like and use Penofin Hardwood Formula Penetrating Oil Finish Sealant with UV protectant), or Machiche wood siding can be allowed to "naturally weather out" to a coveted silvery gray patina.
Learn more about how woods weather with our free, comprehensive guide.
FSC Machiche wood siding is an excellent sustainable rainscreen cladding material option. And Mataverde Machiche hardwood decking and siding has surpassed the ASTM test requirements for a Class A fire rating.
Ready for more Machiche siding design ideas and information? Choose a link below for more.
Get the facts! Learn more about FSC Machiche Hardwood in this free PDF fact sheet.

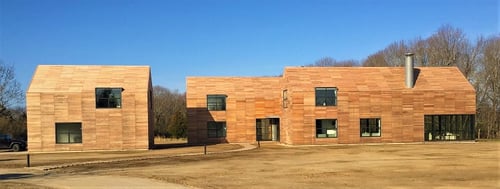

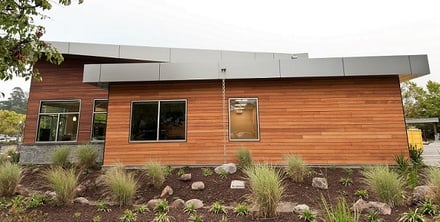

Mataverde Garapa Rainscreen Siding & Cladding
Garapa Rainscreen Hardwood for Climate-Shield Rainscreen System
Mataverde Garapa Rainscreen Hardwood Siding is another rugged and durable wood siding species available for rainscreen wood siding installations. Pronounced /gah-RAH'-pah/, Mataverde Garapa hardwood siding has the same strength and high density characteristics as Garapa decking and Garapa lumber.
Garapa's rich natural golden tones can be enhanced with a natural oil finish or allowed to "weather out" and mature to a natural silvery patina. The exceptional stability of Garapa wood siding makes this lovely species an excellent choice for rainscreen cladding material.

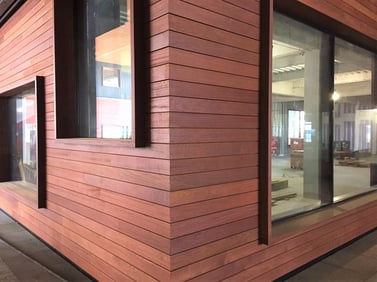

Mataverde Jatoba Rainscreen Siding & Cladding
Jatoba Rainscreen Hardwood for Climate-Shield Rainscreen System
Mataverde Jatoba wood rainscreen screen siding is another handsome and durable wood siding species available for rainscreen wood siding designs and installations. Pronounced /ZHA'-toe'-Bah/, Mataverde Jatoba wood rainscreen siding has the same strength and high density properties as Jatoba hardwood decking and lumber.
Jatoba, often referred to as Brazilian Cherry, has rosy and reddish brown tones and medium to coarser graining. The rich coloration of Jatoba may be enhanced with a natural oil finish, such as Penofin Hardwood formula or a similar sealer. You can also allow Jatoba to "weather out" and age to a natural silvery patina. The exceptional stability, durability and strength of Jatoba wood siding makes this wood species a beautiful rainscreen cladding material option.

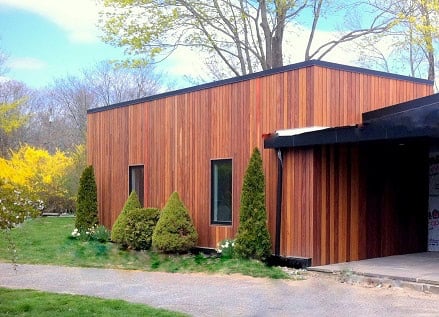

Mataverde® Cumaru Rainscreen Siding & Cladding
Mataverde Cumaru Hardwood Rainscreen and Siding for Climate-Shield Rainscreen System
Mataverde Cumaru Hardwood Siding is another rugged and durable species available for wood rainscreen siding installations. Pronounced KOO'-mah-roo, Mataverde Cumaru cladding has the same strength and high density characteristics as Cumaru decking and Cumaru lumber.
Cumaru wood siding has rich reddish brown and yellowish brown colors whose exotic graining can be enhanced with a natural oil finish. Like Ipe hardwood siding, Cumaru wood siding can also be allowed to "weather out" and age gracefully to a natural silvery patina.
Mataverde Cumaru decking and siding has recently been tested and has surpassed the NFPA (National Fire Protection Association) requirements as a Class A fire rated building material.
Get all the facts. Download a helpful PDF about Cumaru Siding:

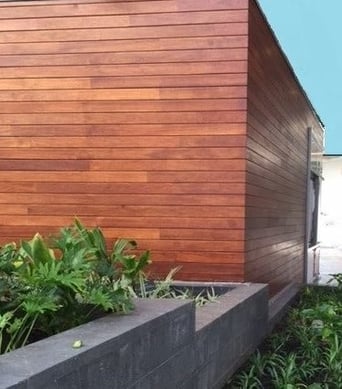

Mataverde® FSC® Santa Maria Rainscreen Siding
Mataverde FSC Certified Santa Maria Hardwood Rainscreen Siding for Climate-Shield Rainscreen System
Like other high density and medium high density hardwoods, Santa Maria can be allowed to weather naturally to a silver-gray patina or it can be re-finished as needed to maintain its rich coloration and graining. Santa Maria siding can also be stained in a wide range of colors.
FSC Santa Maria hardwood siding is an excellent sustainable rainscreen cladding material option.
Want to see more of the advantages to wood rainscreen?
Learn about building green with Climate-Shield, download now.
Mataverde Thermawood Hem-Fir Rainscreen Wood Siding and Cladding
Thermally Modified Hemlock (Hem-Fir) Wood Siding for Climate-Shield Rainscreen System and more.
Mataverde Thermally modified Hem-Fir wood siding is a beautiful and high performance cladding option. Mataverde Thermally modified hemlock is a North American domestic wood species that has been thermally modified to exceed the performance of the original wood species. The unique thermal modification process for Hem-Fir employs a specialized vacuum kiln, under pressure, so the wood doesn't need extremely high temperatures to 'cook out the sugars' to make it insect and rot resistant. Mataverde thermally modified hem-fir performs extremely well in both exterior and interior designs and installations. Works well for cladding, soffit and trim applications. Finish with oil based paints or stains for best results.
Mataverde Thermawood cladding is real wood - the remarkable process strengthens and stabilizes it for exterior use. Mataverde is a sustainable natural wood cladding solution for rainscreen projects and other siding applications.
Get all the facts.

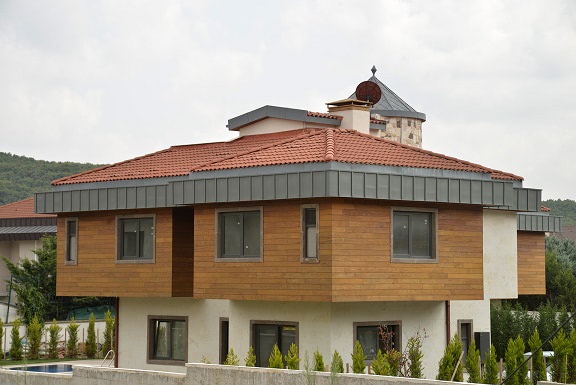

Mataverde Thermowood Rainscreen American Ash Hardwood Siding and Cladding
Thermowood Hardwood Siding for Climate-Shield Rainscreen System
Mataverde Thermowood Ash siding is a unique hardwood cladding product with exceptional stability. Mataverde Thermowood is real wood siding material that has been embraced by architects and designers worldwide, to create and enhance beautiful and enduring project designs from the Arctic Circle to Africa and far beyond. Thermowood is a sustainable, natural wood cladding solution for rainscreen siding and other outdoor projects.
Developed in Scandinavia, Thermowood® technology is an environmentally friendly, patented process that improves the natural properties of sustainable hardwoods and softwoods. The Thermowood process uses no chemicals or toxins, only heat and water, and permanently modifies the wood cell walls of the wood. Thermowood, is an all natural wood that improves the wood's characteristics and performance and gives the wood a rich brown color. After exposure to sun and rain, the wood develops a natural silver-gray patina. Performance is maintained, while beauty is enhanced.
Mataverde Thermowood cladding is real wood - the remarkable process strengthens and stabilizes it for exterior use. Mataverde is a sustainable natural wood cladding solution for rainscreen projects.
Get all the facts. Download a helpful PDF about Thermowood Ash Siding:

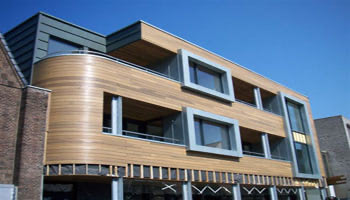

Louro Preto Hardwood Rainscreen Siding and Cladding
Mataverde Louro Preto Rainscreen Cladding and Wood Siding for Climate-Shield Rainscreen System Installations
FSC Certified Mataverde Louro Preto Rainscreen Hardwood Siding is an affordable hardwood cladding option for wood rainscreen designs. Pronounced LAW'-rho PRAY'-toe, Mataverde Louro Preto ranges in color from light tans to medium reddish brown and darker brown tones. Louro Preto is fine grained and exhibits some tropical grain and color variations.
Louro Preto siding will accept an oil finish and may also be finished with most exterior stain products to enhance the color. If your rainscreen project requires an FSC certified hardwood with the ability to be stained any number of colors on a limited budget, Louro Preto siding is a very worthy consideration.

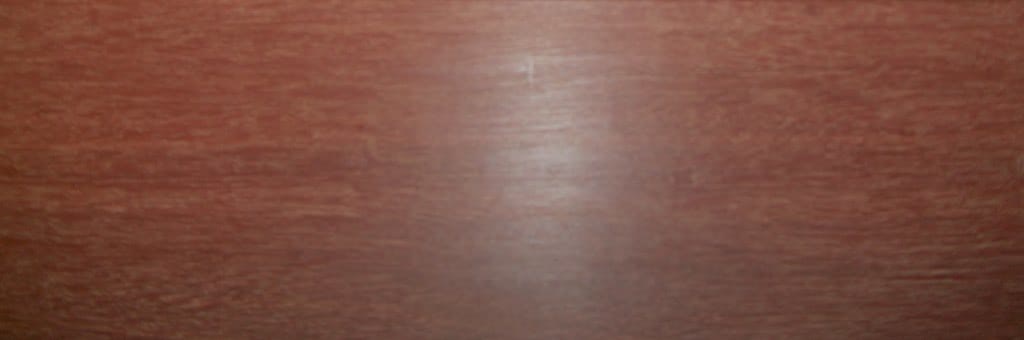

Massaranduba Rainscreen Siding and Cladding
Mataverde Massaranduba Rainscreen Hardwood Cladding and Wood Siding for Climate-Shield Rainscreen System
FSC Certified Mataverde Massaranduba Rainscreen Hardwood Siding is a handsome and affordable hardwood cladding option for rainscreen wood siding installations. Pronounced MASS'-ah-ran-DOO'-bah, Mataverde Massaranduba hardwood rainscreen siding has rich colors ranging from light reddish browns to medium and darker reddish brown. Tropical graining and color variations make it a particularly striking cladding material.
Because of its deep colors, Massaranduba is sometimes referred to as "Brazilian Redwood". Massaranduba however is significantly harder than redwood - about 4 times harder - and its coloring can be enriched with exterior oil finishes such as Penofin.
Massaranduba Rainscreen is an excellent natural cladding choice for projects requiring a moderately priced, FSC certified wood siding material. Learn more about this beautiful wood siding species below.
Get all the facts. Download a helpful PDF about Massaranduba Siding:
Wood Siding Species Comparisons
For additional information about other wood siding material options and their potential compatibility with the Climate-Shield Rainscreen System, please click on the link below to download our
Wood Siding Species Comparisons Chart
If the wood siding species you are considering is not listed on the chart, please Contact our Specialists.
Have a school or campus project coming up?
What types of wood siding are there?
There are lots of wood siding materials, available in either softwood or hardwood species. Softwood species such as red cedar, Douglas fir and redwood are popular, but require regular repainting or refinishing to hold up to outdoor weather. Hardwood siding species such as Ipe, Garapa, Machiche and Cumaru siding are longer lasting and beautiful, with tropical graining and exotic color variations. High density hardwood siding is very durable. Repainting or refinishing hardwood siding is an appearance option but is not required.
How does wood rainscreen siding work?
Wood rainscreen cladding means any wood siding that is installed as part of a rainscreen system. There are lots of rainscreen methods to install cladding and lots of material options. Once you choose your wood siding species, it will look pretty much the same from the outside, no matter what rainscreen installation method you select. But it’s what’s going on behind the siding that makes all the difference. The best rainscreen methods will protect your siding and your home or structure better, and much longer.
How does a wood rainscreen work?
All wood rainscreen methods leave a gap behind the wood siding to allow it dry out, which makes it less prone to rot and decay. But some methods are much more effective than others. Using furring strips to create a rainscreen is OK but is certainly not the best way. The best rainscreen method is to allow ventilation at the top and bottom of the wall, and ventilation between the siding boards, without using furring strips.
How much rainscreen do I need?
One you decide which exterior walls you will install rainscreen siding on, simply measure the wall area. Multiply your wall height times your length to calculate your overall square footage. Then deduct the square footage of windows and doors (where you will not be using siding). Then add a waste factor for trimming and cutting your rainscreen siding to fit.
Typical Example of How to Measure Your Project for Wood Siding:
Do the math
Overall wall size is 10’ high and 40’ long
10 feet x 40 feet = 400 square feet
Deduct square footage of windows
5 windows at 3’ x 5’ each = 75 square feet
Deduct square footage of doors
1 door at 3’ x 6’-8” = 20 square feet
Add waste for trimming and cuts
Add 10% (305 x .1 = 30.5 square feet)
+ 31 SF
Total siding you need to order
How long will wood siding last?
The better the rainscreen system, the longer your wood siding will last. The better the species, the longer your wood siding will last. Softwood sidings must be refinished or repainted to extend their lifetime.
High density hardwood siding lasts much longer. If you choose to let your hardwood siding ‘silver out’ to a driftwood patina, no refinishing is necessary. Hardwood siding installed in an appropriate rainscreen should last for at least 25 years or longer.
Is wood siding better than vinyl?
It really depends on what you are looking for in a siding material. Vinyl siding is lower cost than wood siding. And vinyl siding is easier to care for than any wood siding that needs to be repainted or refinished. If you want your hardwood siding to weather to a silvery gray appearance, the maintenance is about the same as vinyl siding.
From an appearance standpoint vinyl siding comes in many colors and styles. But cheap vinyl siding looks cheap. It covers your house but doesn’t help your property value. Higher grades of vinyl siding look better, but at the end of the day, vinyl siding is still plastic. If you love the warm natural beauty of real wood, nothing compares to the look and value of hardwood siding.
