Making the Right Architectural Specification for your Decking or Outdoor Structure

We have created this Architectural Details and Deck Specifications page specifically for architects and design and construction professionals. To help speed up your design process with accurate details, we have compiled all of our standard architectural drawings, details and specifications for decking, lumber, posts, beams and railing profiles.

These architectural drawings are available in PDF and AutoCAD file formats and we invite you to download them, as needed. We have also created time saving 3-Part CSI Specification Sheets to ensure accurate specification information for your construction documents. Browse these helpful deck building plans to ensure you’re making the correct buying choice.






ARCHITECTURAL DETAILS AND PROFILES:

Decking and Deck Railing



PRE-GROOVED DECKING (SLOTTED DECKING) DETAILS

These pre-grooved decking profiles make hidden fastening of hardwood decking install easily and beautifully. Pregrooved 5/4x6 and 5/4x4 decking is available in Ipe Decking, Cumaru decking, Garapa decking and FSC Machiche decking. You can create a beautiful screw-free decking surface and save the time, labor and aggravation of cutting your own slots on the side of each piece of decking, by ordering Mataverde pre-grooved decking boards.

For best decking performance and long term results, we suggest using pre-grooved decking on projects that are at least 36" above grade and have adequate under-deck ventilation. Please contact your Mataverde Decking Specialist for additional information


DOWNLOAD PDF OF MATAVERDE PRE-GROOVED FLOORING PROFILES

DOWNLOAD CAD OF MATAVERDE PRE-GROOVED FLOORING PROFILES





TONGUE AND GROOVE DECKING PROFILE (T&G Decking)

Tongue and Groove decking, commonly referred to as T&G decking or T&G porch flooring, works great for covered porches and 3 season rooms. Tongue and groove porch flooring is another beautiful screw-free decking material option for areas that are fully covered by a roof.

Because tongue and groove porch flooring has no gaps between the deck boards, it is imperative that the deck be pitched away from the house or structure to drain any standing water off the deck surface.  Proper air flow and under-deck ventilation are key criteria for best long term performance of tongue and grooved porch flooring.

Mataverde Tongue and Groove T&G porch flooring and decking profiles

DOWNLOAD PDF FILE OF MATAVERDE T&G PORCH FLOORING PROFILES

DOWNLOAD CAD FILE OF MATAVERDE T&G PORCH FLOORING PROFILES





MATAVERDE IPE DECK RAIL PROFILES

The deck railing is a highly visible design feature of your new deck. Choose from several Mataverde Deck railing standard profiles to complete the deck of your dreams.  Standard Deck Railing profiles are pictured below.

Looking for something special? We can create a unique decking cap rail profile for your project which you are free to design. Please contact a Mataverde Decking Specialist for details.

           DECK RAIL CAP OPTIONS:

  • Mataverde 2 x 8 Flat Top Rail Cap Profile- this design can create a beautiful wider railing and works exceptionally well when creating a railing system with 6x6 posts
  • Mataverde 5/4 x 6 Flat Top Rail Cap profile- the 5/4x6 rail cap profile is simple, elegant, beautiful, affordable and we have been told it is "beverage friendly".

  • Mataverde 2 x 6 Sculpted Rail Cap profile- this elegant rail cap adds a touch of formal beauty and style to complete any decking project

Mataverde Rail Cap Standard profiles

DOWNLOAD PDF FILE OF MATAVERDE STANDARD DECK RAIL CAP PROFILES

DOWNLOAD CAD FILE OF MATAVERDE STANDARD DECK RAIL CAP PROFILES





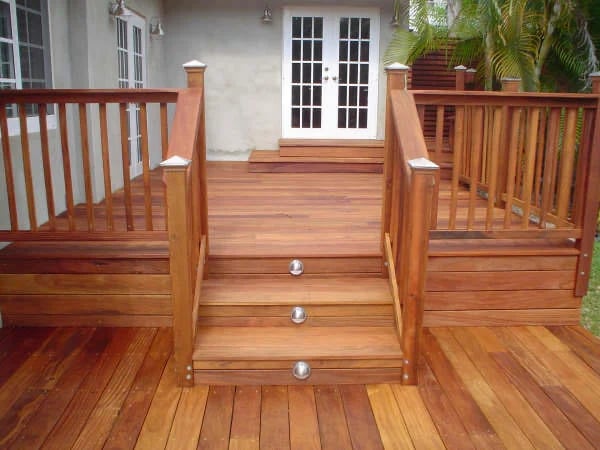

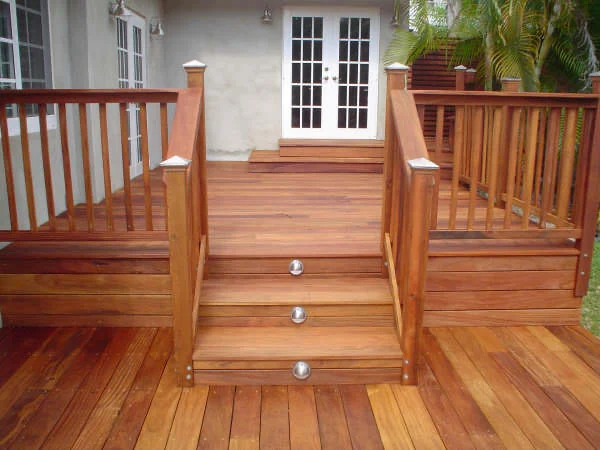

DECK RAILING SYSTEM OPTIONS

The Ipe sub-rails and balusters can be pre-assembled for quick and efficient Ipe deck railing installation. Choose from the 5/4x6 Ipe Flat Rail Cap profile (beverage friendly railing option) or the stylish, sculpted look of the 2x6 Ipe Rail cap. Or design a truly unique deck railing system that suits your style.

Typical Mataverde Ipe Deck Railing Construction Consists of:

• Ipe Deck Rail Cap (choose any of the Mataverde Deck Rail Caps shown in previous section, or create your own)

• Ipe Sub-Rail, at the top

• 2x2 Ipe Baluster

• Ipe Sub-Rail, at the bottom



Pictured: Railing System Installation Detail (Typical)

 VIEW ADDITIONAL RAILING OPTIONS








Download Mataverde Decking and Railing Profiles,

Architectural Drawings and Specifications



To help architects and other design professionals manage their workload, we have developed our standard Mataverde decking, lumber and railing profiles in PDF and AutoCAD file formats. Ipe_deck_and_custom_railings_maine_waterfront.jpgPlease download files for your project's use, as needed.

We have also developed 3-Part CSI Specification sheets to save you additional time and accurate specification information for your construction documents. We hope you find these drawings and specifications helpful.

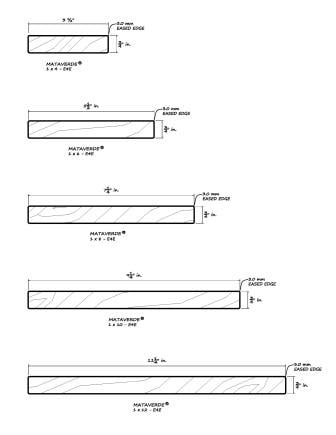

Mataverde Decking: 1x Decking and Board Drawings

This suite of Architectural Drawings includes 1x4 and 1x6 Mataverde decking profiles and 1x8, 1x10 and 1x12 Mataverde Board profiles. Please download these profiles (pictured right) by using the following links:



DOWNLOAD PDF OF MATAVERDE 1X DECKING AND BOARD PROFILES

DOWNLOAD CAD FILE OF MATAVERDE 1X DECKING AND BOARD PROFILES

 Mataverde Decking 1x Profiles

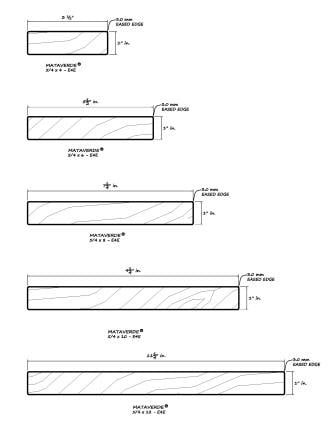

Mataverde Decking: 5/4 Decking and 5/4 Board Drawings

This suite of Architectural Drawings includes Mataverde 5/4x4 and 5/4x6 Decking and Mataverde 5/4x8, 5/4x10 and 5/4x12 Board profiles. Please download these profiles (pictured right) by using the following links:



DOWNLOAD PDF OF MATAVERDE 5/4 X DECKING AND BOARD PROFILES

DOWNLOAD CAD FILE OF MATAVERDE 5/4 X DECKING AND BOARD PROFILES

 Mataverde  Decking 5 Quarter inch Profiles





Mataverde Pre-Grooved Decking and Tongue and Groove Decking Profiles

This suite of Architectural Drawings includes Mataverde 5/4x4 and 5/4x6 Decking and Mataverde 5/4x8, 5/4x10 and 5/4x12 Board profiles. Please download these profiles (pictured right) by using the following links:



DOWNLOAD PDF OF MATAVERDE PRE-GROOVED DECKING AND T&G PORCH FLOORING PROFILES

DOWNLOAD CAD FILE OF MATAVERDE PRE-GROOVED DECKING AND T&G PORCH FLOORING PROFILES

Mataverde Pre-grooved and tongue and groove decking profiles

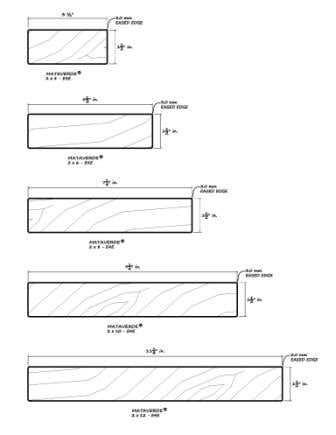

Mataverde 2x Dimensional Lumber Drawings

This suite of Architectural Drawings includes Mataverde 2x4, 2x6 , 2x8, 2x10 and 2x12 Dimensional Lumber profiles. Please download these profiles (pictured right) by using the following links:



DOWNLOAD PDF FILE OF MATAVERDE DIMENSIONAL LUMBER PROFILES

DOWNLOAD CAD FILE OF MATAVERDE DIMENSIONAL LUMBER PROFILES

Mataverde  Decking 2x Lumber Profiles

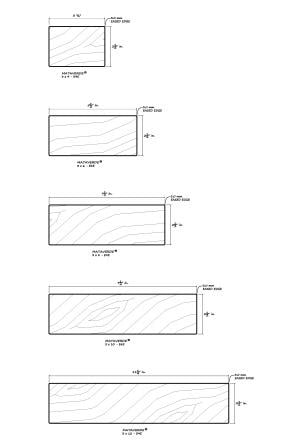

Mataverde 3x Beam Drawings

This suite of Architectural Drawings includes Mataverde 3x4, 3x6, 3x8, 3x10 and 3x12 Beam profiles. Please download your profiles by clicking the appropriate links below.



DOWNLOAD PDF FILE OF MATAVERDE 3X BEAM PROFILES

DOWNLOAD CAD FILE OF MATAVERDE 3X BEAM PROFILES

Mataverde  Decking 3x Beam Profiles

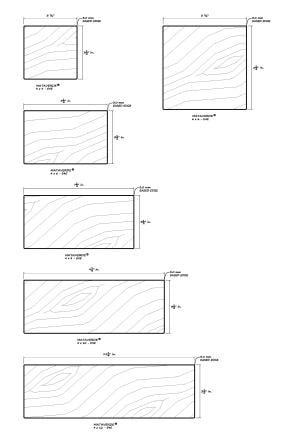

Mataverde 4x and 6x Post and Heavy Timber Drawings

This suite of Architectural Drawings includes Mataverde 4x4, 4x6, 4x8, 4x10, 4x12 and 6x6 post, beam and heavy timber profiles. Please download your profiles by clicking the appropriate links below.



DOWNLOAD PDF FILE OF MATAVERDE POST, BEAM AND HEAVY TIMBER PROFILES

DOWNLOAD CAD FILE OF MATAVERDE POST, BEAM AND HEAVY TIMBER PROFILES

 Mataverde Decking 4x and 6x Post and timber profiles





3-PART CSI SPECIFICATION SHEETS

Please download our 3 Part CSI Specifications for use in your project designs. Please feel free to contact our Architectural and Technical Support team with any questions and requests you may have.



Download 061500 3 Part CSI Specifications for Mataverde Decking Materials

Download 061100 3 part CSI Specifications for Mataverde Exterior Hardwood
