Best Way to Install Trespa Pura NFC Siding Vertically

Written by on

Vertical siding installation is all the rage right now. And Pura NFC siding by Trespa is a premium cladding solution. Installing Trespa Pura siding vertically just got a whole lot easier. Introducing the Climate-Shield Rainscreen System vertical siding components for Pura siding installations.

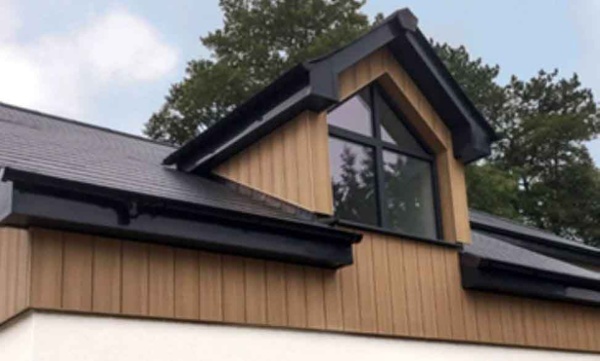

Trespa Pura NFC Sidings vertical installation

Trespa Pura NFC Siding installs beautifully vertically


The Climate-Shield CSTV rainscreen system is designed for fast and highly effective vertical installation of Trespa Pura sidings over plywood or OSB exterior sheathing. It includes Climate-Shield rainscreen clips to fasten the siding, a vertical starter rail to set your vertical Pura siding planks on and intermediate plank supports for setting vertical Pura siding planks on taller walls.

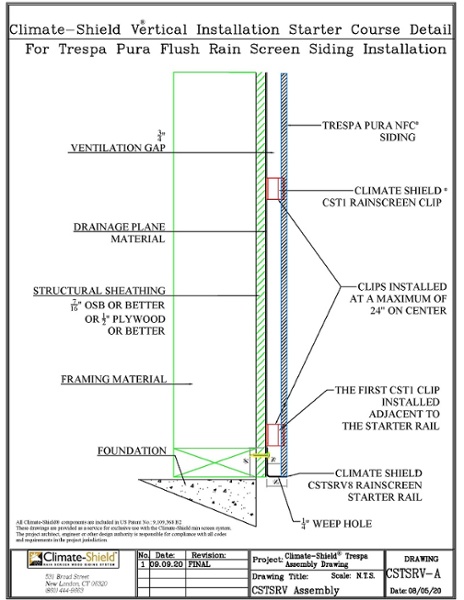

CSTSRV-A Trespa Pura vertical wall assembly at starter rail Vertical installation of Pura NFC siding starts easily with the Climate-Shield CSTVSR8 Starter Rail





Why Use the Climate-Shield Rainscreen fastening system  for Vertical Installation of Pura NFC Siding?

You asked us for a way to install Trespa Pura sidings without all the furring strips.  We listened. First we developed the Climate-Shield CST1 rainscreen clip. The Climate-Shield CST1 fastener, is designed specifically for installing Trespa Pura planks over plywood exterior sheathings, without using furring strips. The CST1 fastener can be used for installing Pura NFC sidings either horizontally or vertically. By eliminating the need for furring strips for field siding, three wonderful things happen.

  • First, you save the expense of furring strips.
  • Second you save all the time and labor costs for installing furring strips.
  • Thirdly, by eliminating most of the furring strips, you have created a pressure equalized rainscreen system. A pressure equalized back ventilated rainscreen dries out quickly and creates a high performance sustainable rainscreen design.


More about Climate-Shield CST1 Installation


Ever since the Climate-Shield CST1 rainscreen clip was first introduced for horizontal siding installations of Pura NFC sidings, the feedback we have been receiving from contractors has been incredible. An experienced contractor in California that has done several Pura installations using furring strips, estimated his labor savings at more than 30% using the Climate-Shield CST1 rainscreen system than he did on his last Pura siding installation using furring strips.


Check out Climate-Shield Cost Savings Case Study installing Pura Siding


And he is not alone. Other installation crews have shared similar stories of time and labor savings of up to and over 25% on Pura NFC siding installations. Hmm. Labor savings. Cost savings. Time savings. Better installation. Better wall system performance. What is next?


Vertical Pura siding installation can be tricky when using furring strips

Normally, with furring strips, you need the wall to drain properly so installing furring strips vertically is the first step. But then you need to add an additional layer of furring strips horizontally to create fastening points for your siding. Wait, what just happened? Well, sorry to tell you, but you just spent twice as much time, money. and labor with furring strips than you need to. And your wall cavity is now ‘double deep’. “Oh no! Help!"

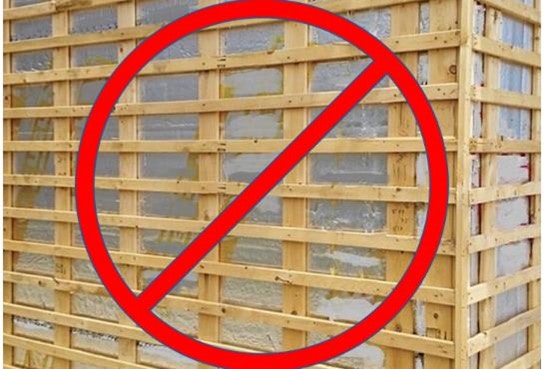

messy furring strip matrix for vertical siding is unnecessary

No need for an elaborate matrix of furring strips when using the CSTV system to install Pura siding vertically


There’s got to be a better way to install Pura NFC sidings vertically.


There is now. We heard you and went right to work. Meet the Climate-Shield CSTV rainscreen system for Pura NFC sidings by Trespa. The Climate-Shield CSTV rainscreen system begins with the CSTVSR8 vertical starter rail. Installing this pre-drilled starter rail is quick. And installing it level is simple. The weep holes on the bottom of the starter rail allows any moisture in the rainscreen cavity to drain quickly. This keeps your wall dry and eliminates the potential for moisture and mold build up.

Trespa Pura vertical design for apartments  using multiple colors

The Climate-Shield CST1 rainscreen clip works the same way for vertical Pura siding installations as it does for horizontal installations. The only difference is the ‘top and bottom’ of the Pura siding planks are now the ‘left and right’.

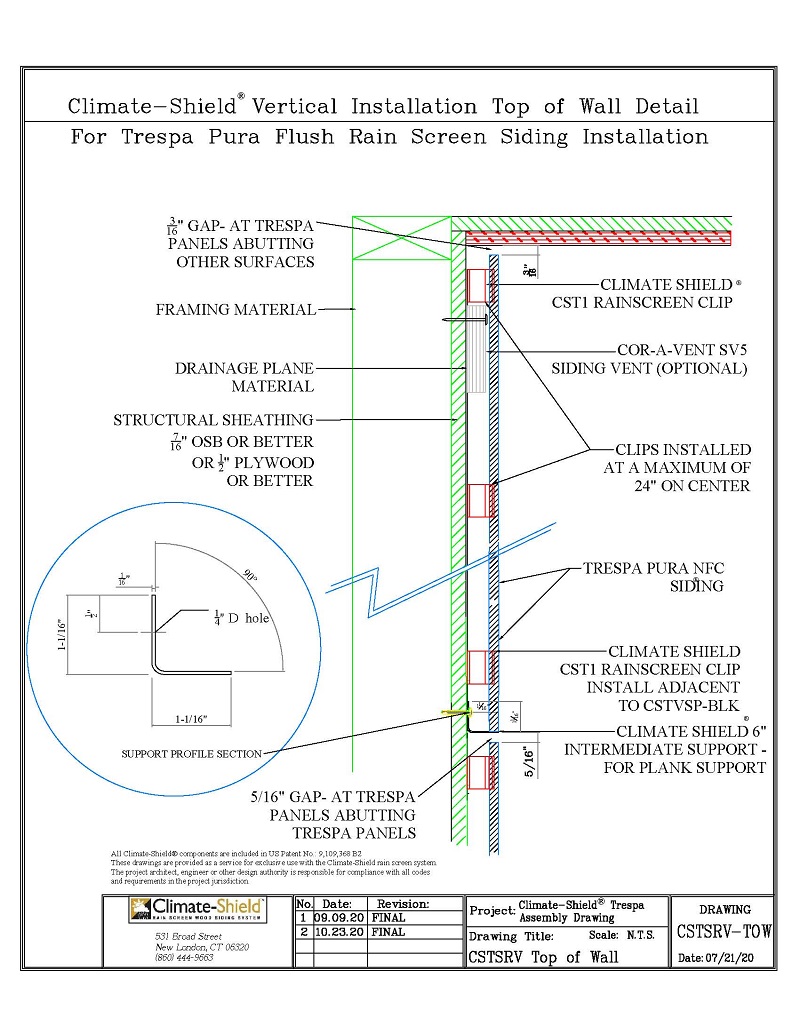

Climate-Shield CSTSRV-TOW Trespa Pura siding vertical top of wall assembly

Detail of Climate-Shield CSTVPS vertical plank support for Pura siding and top of wall assembly


To save you time and ‘trial and error’ mistakes, we have developed Climate-Shield CST1 Vertical Installation Guidelines for Pura NFC sidings.
